Anthropomorphic Test Devices

From premature infants to 95 percentile adults, CAPE has a wide range of Anthropomorphic Test Devices, also known as test dummies, to accommodate the variety of industry tests that we perform. You can see many of the models we have below.

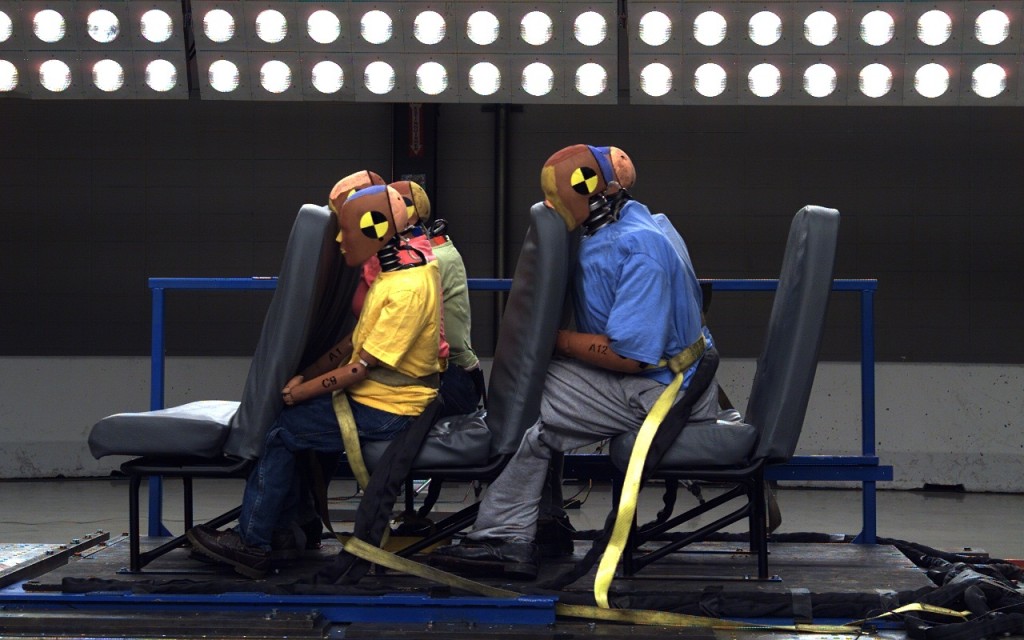

 Test dummies are shows waiting to be used for crash testing purposes at CAPE.



Adult ATDs

ATD Model
 Description [Lbs] [Kg] Available
Black Tuffy 50th Male Torso Block N/A N/A 1
HIII5F Hybrid III 5th Female 108
49
 2
HII50M Hybrid II 50th Male 164
74.4
 4
MAN-16 ECE Adult Male 168
76.2
 2
TNO-10 ECE Adult Male 168 76.2 2
HIII50M Hybrid III 50th Male 171
77.6
 4
BioSID 50th Male Side Impact 194 88 1
HIII95LM Hybrid III 95th Male 223
101.1
 4



Infant sized test dummies await their use in crash testing at CAPE.

Child ATDs

ATD Model Description [Lbs] [Kg] Available
P0 ECE Newborn Infant 7.5 3.4 1
CAMI-I CAMI Newborn Infant 7.5 3.4 1
CAMI-II CAMI Six Month Old Infant 17 7.7 2
P3/4 ECE Nine Month Old Child 20 9.1 2
CRABI12 CRABI Twelve Month Old Infant 22 10 2
P1-1/2 ECE Eighteen Month Old 24.5 11.1 1
CRABI18 Hybrid III Eighteen Month Old Child 24.7 11.2 1
SA103C Three Year Old Child 33 15 2
P3 ECE Three Year Old Child 33.6 15.2 2
HIII3C Hybrid III Three Year Old 35.6 16.1 2
SA106C Six Years Old 47.3 21.5 2
VIP6C VIP Six Year Old 48 21.8 1
P6 ECE Six Years Old 49.6 22.5 1
HIII6C Hybrid III Six Year Old/Six Year Old Heavy 52/63 23.4/28.6 2
P10 ECE Ten Year Old 72 32.7 1
HIII10C Hybrid III Ten Year Old 77.6 35.2 1
